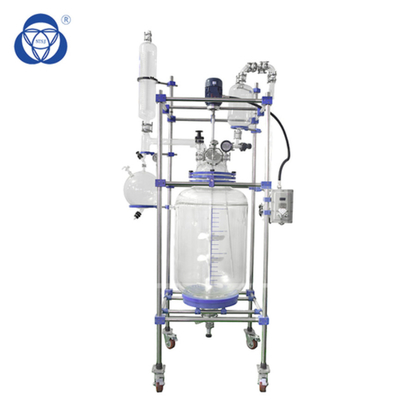

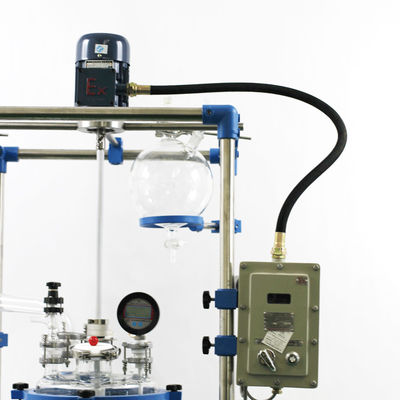

Customized size Jacketed Glass Reactor Vessel 150L-200L
The Jacketed glass reactor(100L) have been widely used in chemical reaction, combination, separation and concentration. Different heating or cooling liquids, such as water or oil, can be injected in the interlayer of jackted glass reactor for providing a constant temperature for reactions. It also can provide excellent mixing in the lab reactor under atmospheric or sub-atmospheric pressure. The transparent glass structure can be helpful to monitor the complete reaction.
Features of Jacketed Glass Reactor:
- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties
- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
- Frequency-conversion stirring system + PTFE seal & bearing system
- Digital display and control
- Easy-to-install modular design for exceptional ease and low cost of maintenance
|
Product Model |
FPGR-5 |
FPGR-10 |
FPGR-30 |
FPGR-50 |
|
Volume(L) |
5 |
10 |
30 |
50 |
|
Neck No.on Cover |
5 |
6 |
6 |
6 |
|
External Diameter of Inner Vessel(mm) |
180 |
230 |
330 |
365 |
|
External Diameter of Outer Vessel(mm) |
230 |
290 |
365 |
410 |
|
Cover Diameter(mm) |
180 |
265 |
265 |
265 |
|
Vessel Height(mm) |
400 |
450 |
730 |
850 |
|
Motor Power(W) |
120 |
120 |
180 |
180 |
|
Vacuum Degree(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
|
Rotation Speed(rpm) |
50-600 |
50-600 |
50-600 |
50-600 |
|
Torque(Nm) |
1.9 |
1.9 |
2.86 |
2.86 |
|
Power(V) |
220 |
220 |
220 |
220 |
|
Dimension(mm) |
450*450*1200 |
650*650*1900 |
700*500*2100 |
700*500*2300 |
Main Features
Customizable
In most cases, the 100L Glass Reactor is made out of high-quality borosilicate glass. The glass is used in making the reactor due to its ability to withstand high temperate and pressure. There are several chemicals used in the chemical reaction. It is essential to choose a material that is highly resistant to the chemical reaction.
The use of borosilicate makes it possible for different chemical reactors to occur in the glass but the vessel will not be affected. Even at high temperate and pressure, the borosilicate glass will still hold its shape.
The reactor glass needs some form of stirring so that the chemicals can mix well for the perfect chemical reaction. The stirring process is brought about due to the use of a motor.
The booster motor is carefully selected to ensure the chemical reaction takes place in an ideal environment.
Product Details
Packing And Delivery
Packaging
Export plywood case or carton.
Both neutral and customized packaging are available.
Shipping
Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
Our factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.
Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
FAQ
Q:What's the advantage of your glass reactor?
A:G3.3 high borosilicate glass is used, which can afford temp from -100℃~250℃ and anti corrosive.
Q:How many kinds of your glass reactor and what about the volume you can make?
A:Jacketed: 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 80l,100L,150L,200L(Biggest one in China)
Single Wall: 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 80l,100L,150L,200L,250L,300L
Triple Wall: 1L,2L,3L,5L, 10L, 20L, 30L, 50L,100L
Q:If we want to customize reactor system, it is available?
A:Sure, we are experienced at this, we have professional technical team, we can design the drawing according to your requirements and then produce it.
Q:Can you offer the supporting facilities?
A:Yes, we can offer you the vacuum pump, heating and cooling system as per your request.
Q: What kind of payment term do you accept?
A:Normally we accept TT, Western Union, L/C or Cash. The exact term with be discussed during the deal.
Q:How will you deliver these goods?
A:As your willing, we can deliver by air, by sea, by international express, freight cost will be at your expense.
Q:How will package glass equipment?
A:We package these glass equipment in good and Non fumigation standard wooden case.
