| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

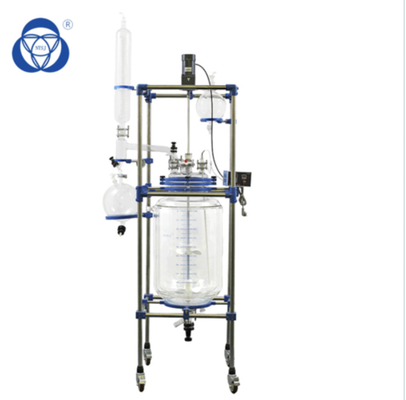

100L 150L 200L Lab Glass Reactor Chemical Jacketed Reactor
Detailed Explanationof Structure
Ceramic static ring, graphite ring and ceramic bearing are adoptedto mechanical seal, which can resist to corrosion and high temperature, keep high precision sealing in working conditions.
Product Description
The Series jacketed glass reactor systems is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries. A wide choice of volumes are available from 500mL to 200L. When working with heating / cooling circulators, the temperature inside the vessel can be gently and accurately controlled by thermal fluid circulation inside the jacket. This reaction vessel is rated to operate safely under full vacuum.
- Frequency-conversion stirring system + PTFE seal & bearing system
- Digital display and control
- Easy-to-install modular design for exceptional ease and low cost of maintenance
- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties.
- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
Customizable
| Product Model | FPGR-50 | FPGR-80 | FPGR-100 | FPGR-150 | FPGR-200 |
| Volume(L) | 50 | 80 | 100 | 150 | 200 |
| Neck No.on Cover | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 365 | 410 | 460 | 550 | 600 |
| External Diameter of Outer Vessel(mm) | 410 | 460 | 500 | 600 | 650 |
| Cover Diameter(mm) | 265 | 340 | 340 | 340 | 340 |
| Vessel Height(mm) | 850 | 950 | 950 | 980 | 1200 |
| Motor Power(W) | 180 | 370 | 370 | 750 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 2.86 | 5.89 | 5.89 | 11.9 | 11.9 |
| Power(V) | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 700*500*2300 | 1000*700*2500 | 1000*700*2700 | 1200*900*3000 | 1200*900*3200 |
Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.
The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products.
Customizable
The seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced.
The seller will provide the accessories and charge themaintenance cost according to the price.
For on-site installation and commissioning, additional charges will apply.
The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables)
Video
Video
Video
|
|
